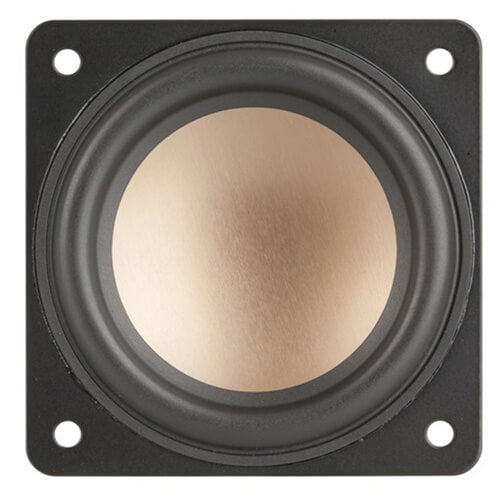

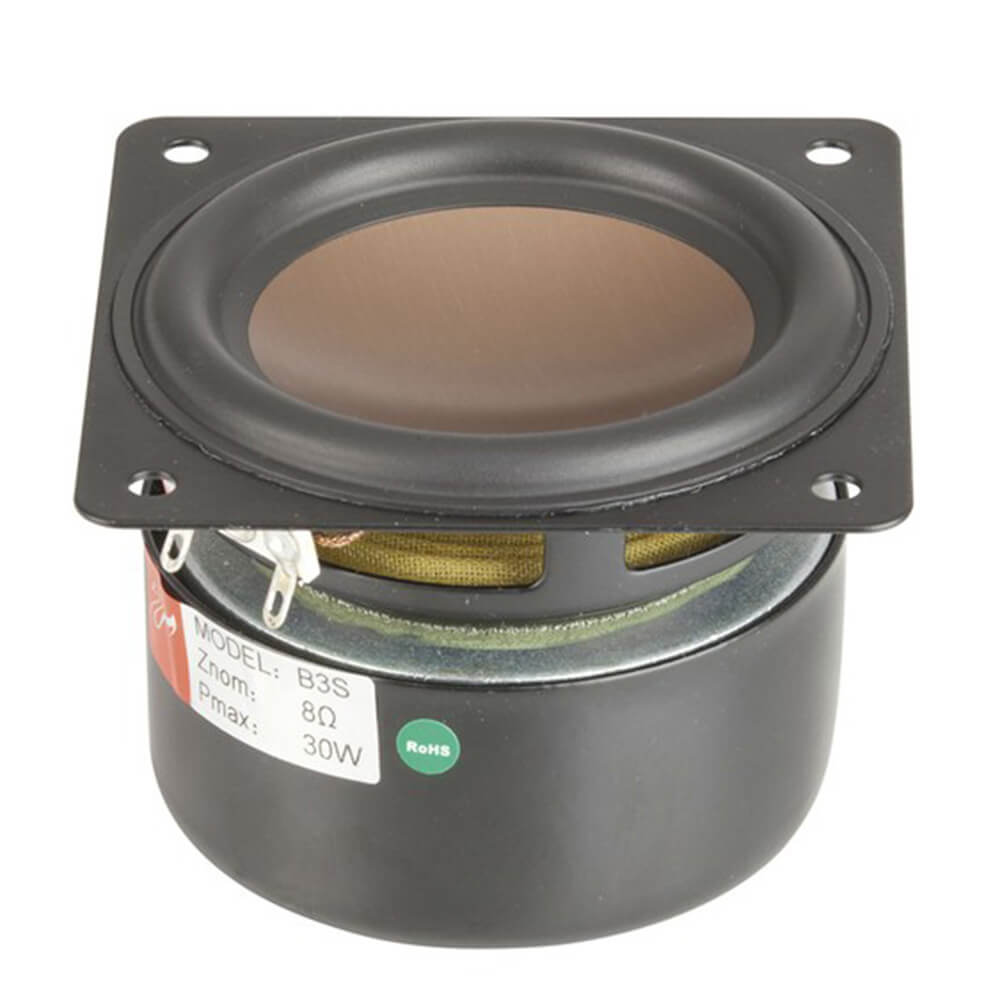

Full range speakers suitable for use in surround speakers in home theatre system, computer multimedia speakers and portable speaker designs. It has advanced alloy cone design coated with special damping material.
4 x screw mounting holes
General Data
Max Power Handling (Pmax)(W): 30
Weight (M)(Kg): 0.53
Electrical Data
Nominal Impedance (Z)(Ω)): 8
DC (Re)(Ω): 6.5
Voice Coil and Magnet Parameters
VC Diameter (mm): 20
VC Length (H)(mm): 9
VC Former: Kapton
VC Frame: CCAW
Magnet System: shielded
Magnet Former: Ferrite
Force Factor (BL)(N/A): 3.06
Gap Height (He)(mm): 3
Linear Excursion (Xmax)(mm): 3

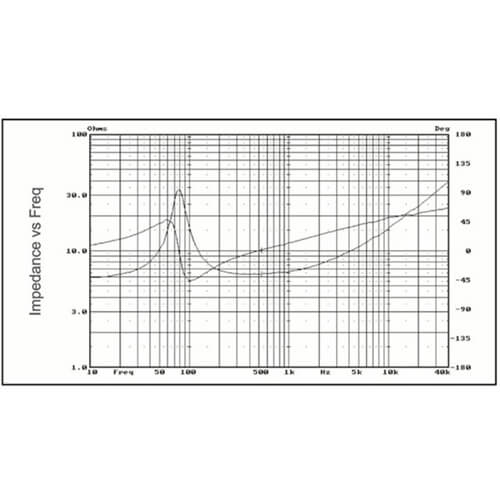

T-S Parameters
Suspension Compliance (Cms)(uM/N): 920
Mechanical Q (Qms): 3.75
Electrical Q (Qes): 1.15
Total Q (Qts): 0.88
Moving Mass (Mms)(g): 2.6
Effective Piston Area (Sd)(m2): 0
Product Specifications
Note: This item requires Australian Standard 230V / 50Hz mains power supply to operate. Please check your local power supply to ensure that this item will work in your country. Adapters and transformers may be required and are not included.
- Length : 78mm
- Width : 78mm
- Depth : 53mm
- Weight : 0.53kg
- Packaged Volume : 0.97l
- Packaged Weight : 0.58kg
- Packaged Length : 11cm
- Packaged Width : 11cm
- Packaged Height : 8cm
- Driver Material : Metal
- Nominal Impedance : 8Ω
- RMS Power Rating : 15W
- Sensitivity (SPL@1W, 1m) : 82dB
- Magnetically Shielded : true
| Length : 11 cm |
Width : 11 cm |
| Height : 8 cm |
